Aqua-Magic System

Say goodbye to your watering can with Aqua-Magic System:
the solar power drip irrigation system
with no faucet and no electrical connection

A timer, a photovoltaic panel and a build-in pump
that draws water from a tank

Aqua-Magic System is Claber exclusive new product which allows you to easily create a drip irrigation system for all your terraces or small vegetable patches, including those with no electrical or water supply.

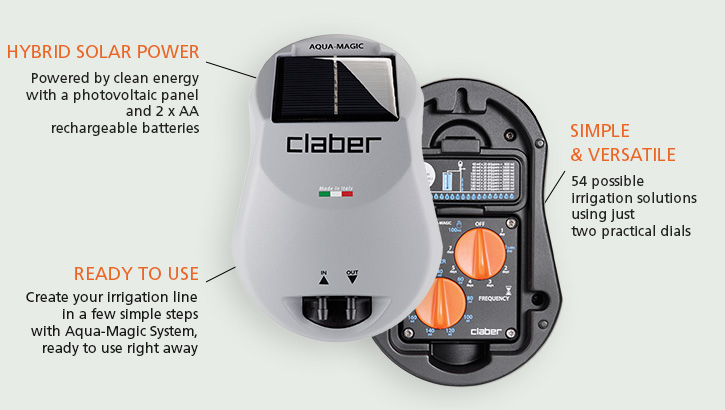

At the heart of the system is the Aqua-Magic timer, equipped with a built-in photovoltaic panel which powers two standard rechargeable batteries and one small electric pump which draws the water and distributes it to the drippers.

Aqua-Magic System also includes a filter, feeding tube, drippers and everything else you need to set up a drip irrigation system for up to 20 pots in a few simple steps.

With Aqua-Magic System you can leave your watering can behind to enjoy some relaxing time on the deck or terrace. Simply fill any common container with water to ensure your plants are always happy and well-watered, without any waste.

FEATURES +
  • Hybrid power supply: sunlight, which charges two rechargeable batteries through the built-in photovoltaic panel
  • Batteries: 2 rechargeable HR6/AA 1.2V NiMH, at least 1800 mAh (not included)
  • Water supply:water tank (no faucet)
  • System: min.10 – max. 20 drippers
  • Programming: 2 dials, one for the watering frequency and one for the water quantity per dripper
  • Programs: 54 different irrigation solutions
  • Watering frequency: from every day to once a week; can be set to every day, with a 6-hour delay
  • Water quantity: from 1.35 to 6.75 oz for each dripper (with 20 drippers installed)
  • Manual irrigation: 3.35 fl. oz per dripper (can be stopped before)
Watch the video

AN AQUA-MAGIC SYSTEM FOR EVERY REQUIREMENT

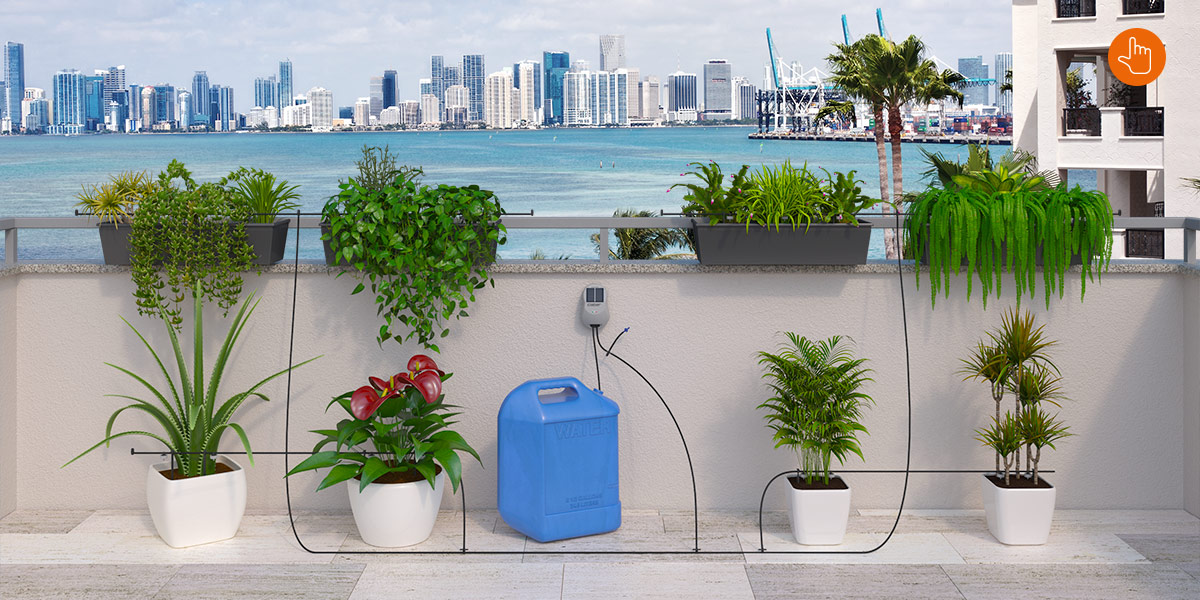

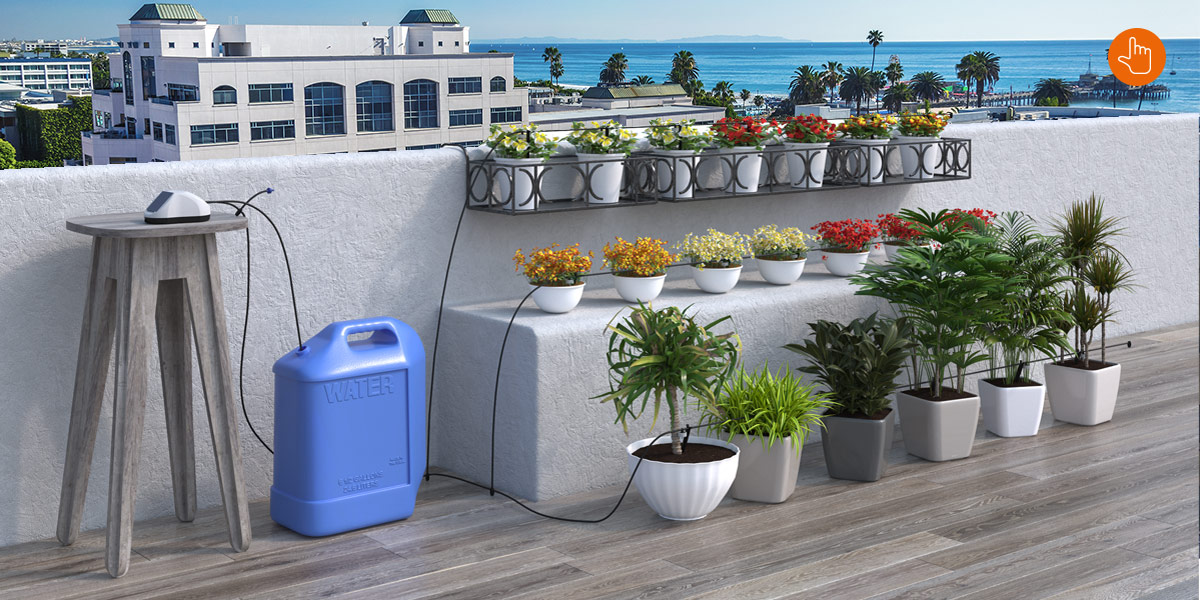

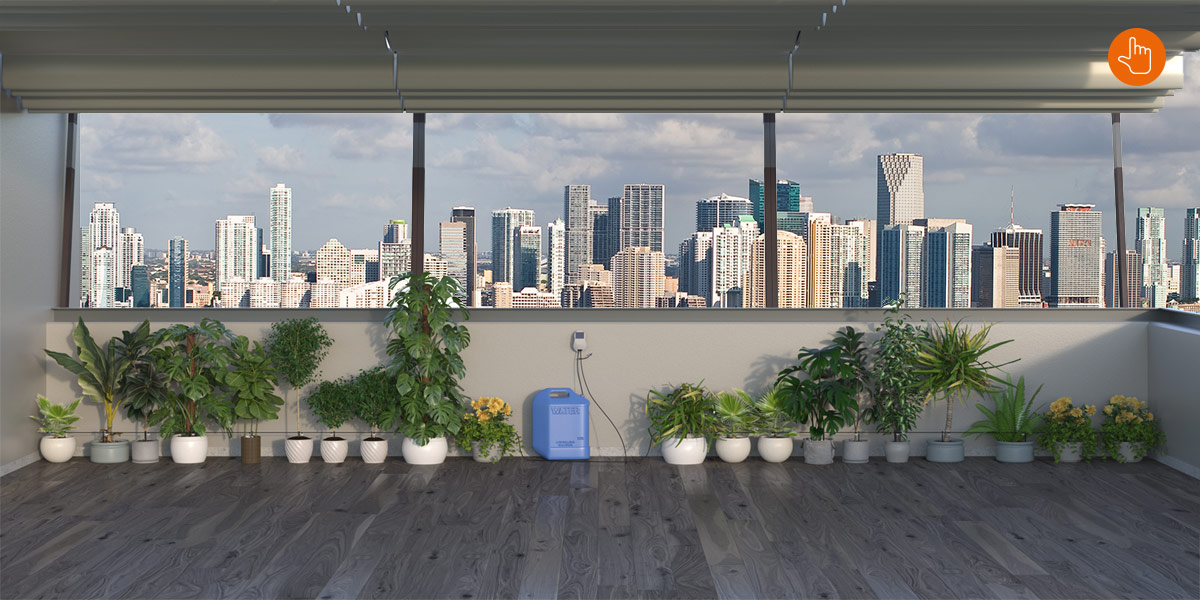

With Aqua-Magic System, 2 irrigation lines can be set up to water up to 10 pots each.

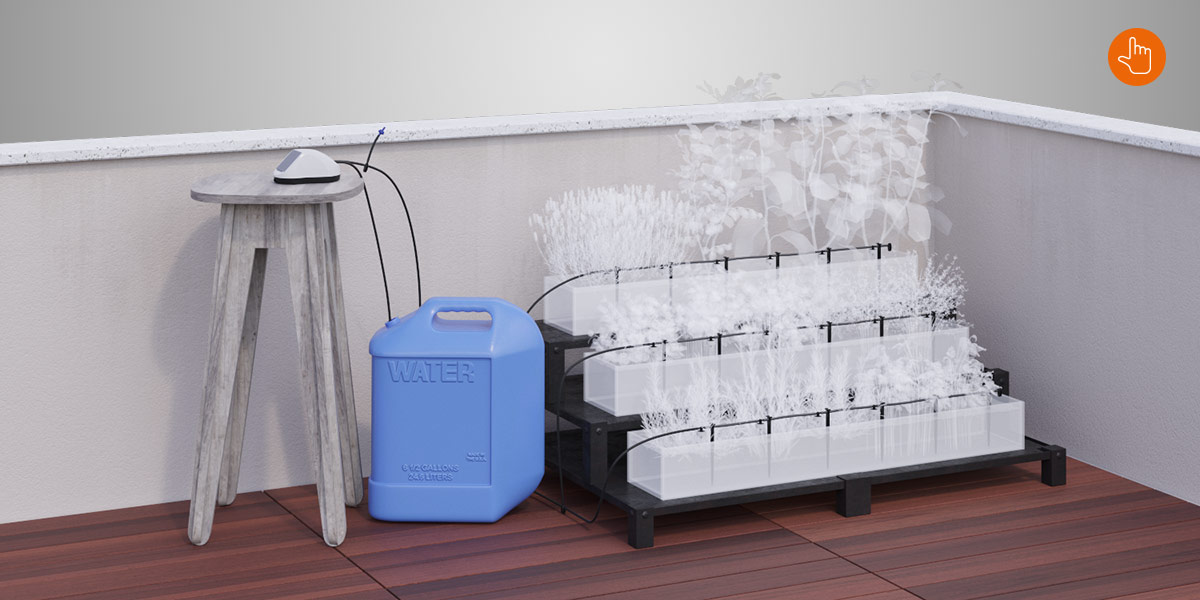

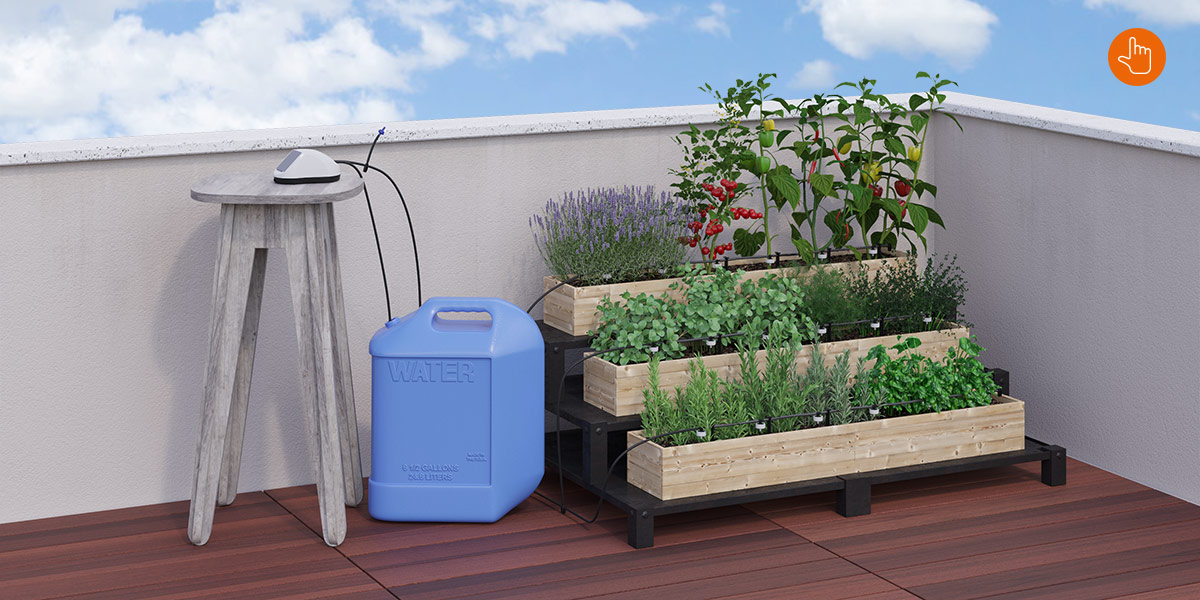

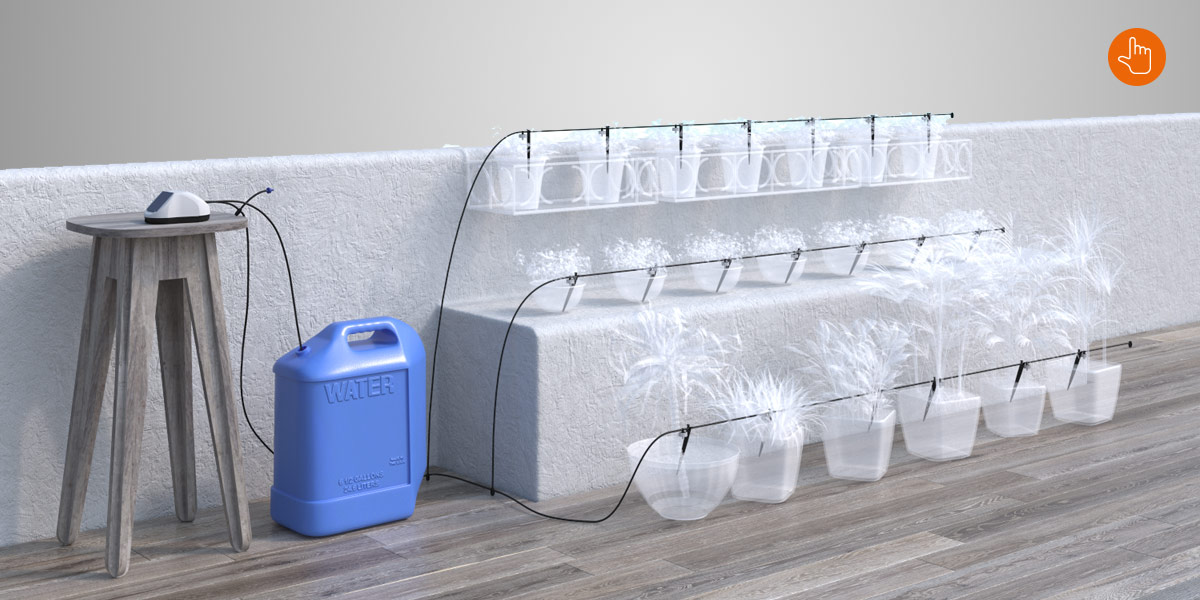

A three-level irrigation system can be set up, with different flow rates of water for the pots lower down to those higher up.

Every plant in your hanging vegetable garden is well watered from the roots, and the pots can be arranged on different levels.

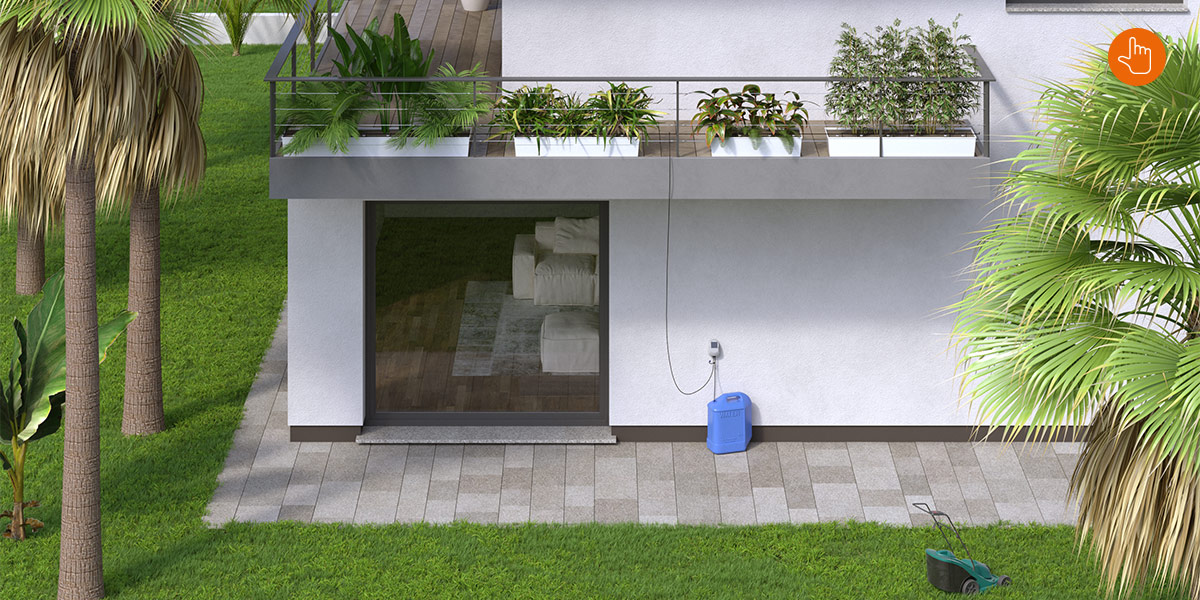

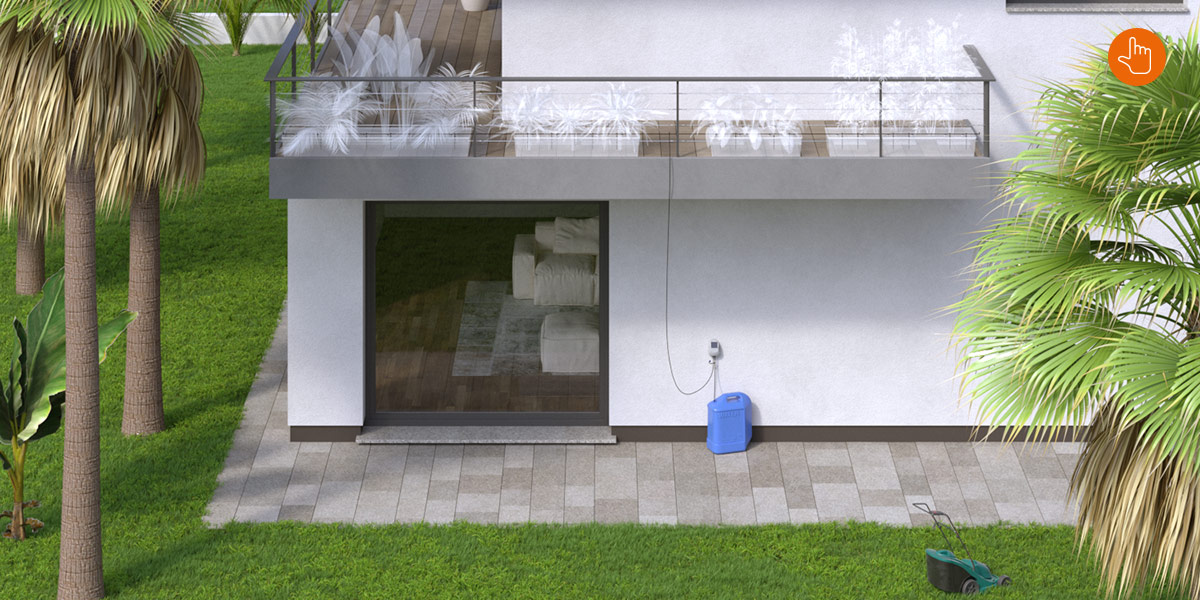

Pots can also be positioned above the tank, higher up on a ledge for example, while still receiving enough water.

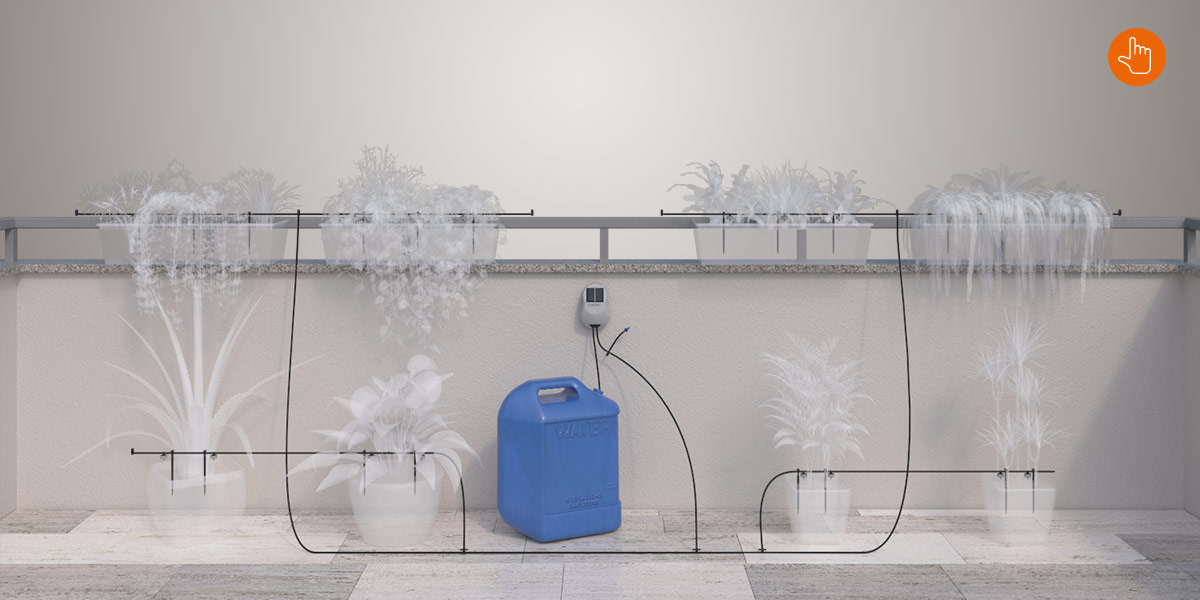

To water large pots and hanging baskets, two irrigation lines can be set up, each one branched off on two levels.

AN EFFICIENT AND VERSATILE SYSTEM

WATER RESERVE AND CLEAN ENERGY

Thanks to the Aqua-Magic System, today all you have to do is to fill a container with water to leave behind your watering can and enjoy a well-deserved rest. The Aqua-Magic System ensures your plants are well watered for weeks, even while you’re on holiday, without any connection to a faucet.

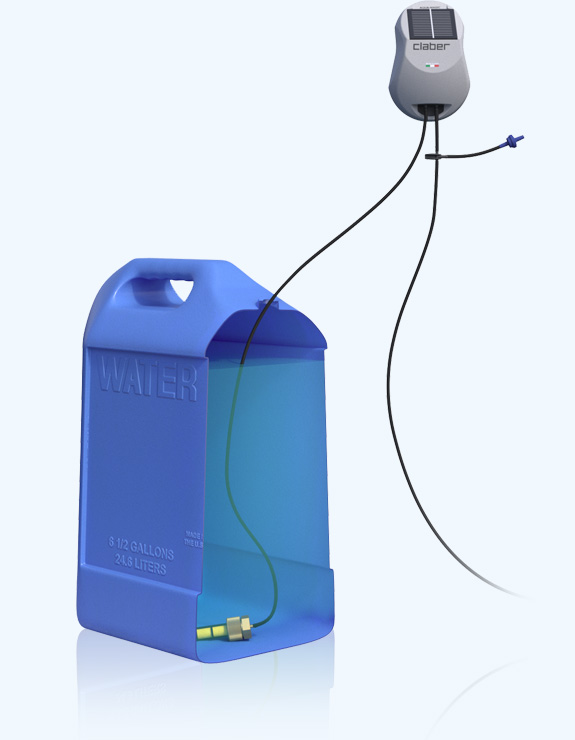

The compact, resistant casing around the Aqua-Magic timer houses a small but powerful electric pump which draws the water from the container and distributes it to the drippers through the distribution tubing fitted with filter.
The photovoltaic panel powers two rechargeable batteries, making the system fully independent from the mains.

A COMPLETE IRRIGATION SYSTEM IN JUST A FEW MINUTES

It really does take just a few minutes to set up one or more drip irrigation lines to water all your plants. The Aqua-Magic System comes ready with 20 drippers which guarantee an accurate irrigation for each, even the most delicate ones, always delivering the correct amount of water, without any waste.
You can set up a single line, branch it off , arrange pots on different levels or water plants positioned much higher up than the pump and water container, for the utmost versatility.

EASE OF PROGRAMMING AT YOUR FINGERTIPS

The water to be delivered per day is set for each dripper, chosen from one of the options provided (between 1.35 and 6.75 oz), as the watering frequency (from every day to once per week).
Simply turn the two dials and the Aqua-Magic System will start working immediately.
Watering your plants has never been so simple.

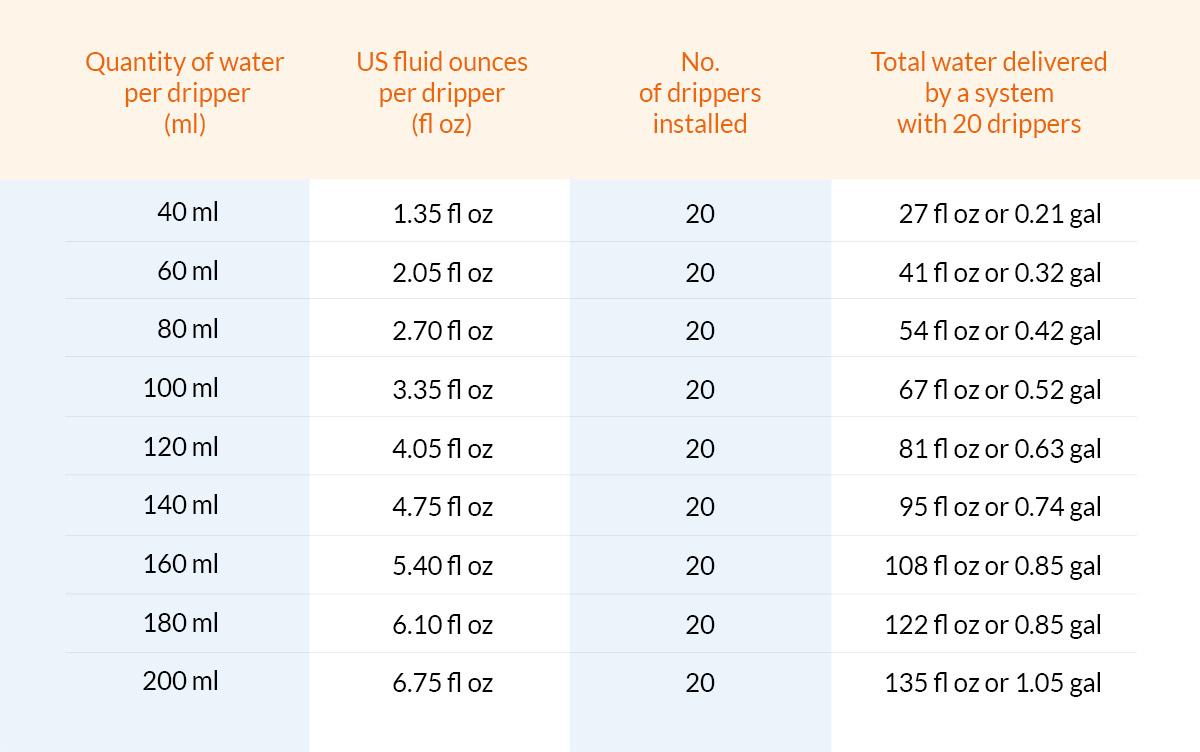

ML TO OZ CONVERSION CHART

THE KIT INCLUDES EVERYTHING YOU NEED: JUST ADD A CONTAINER ... AND SOME SUN

In the Aqua-Magic System package, you will find everything you need to set up your drip irrigation system right away:

  • 1 x Aqua-Magic timer
  • 1 x wall bracket with screws and plugs

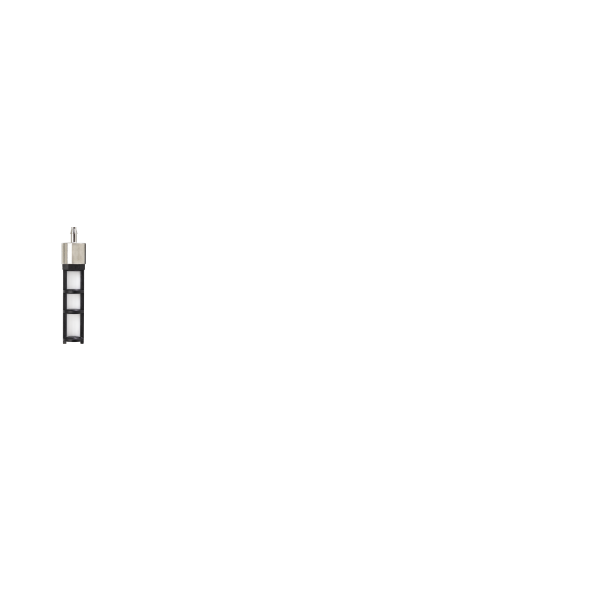

  • 1 x 1/4” filter
  • 1 x non-return valve
  • 5 x 3-way couplings
  • 6 x end-of-line plugs
  • 20 x drippers
  • 20 x stakes
  • 66 ft of ¼” distribution tubing

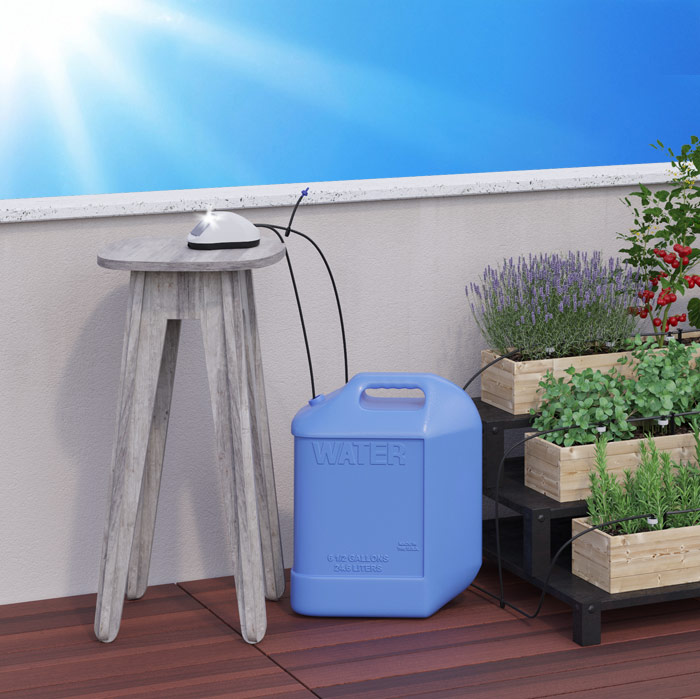

To use the Aqua-Magic System, just grab any common container of whatever size you prefer and fill it with water: 20 gallons are sufficient for up to 4 weeks of drip irrigation. The sun will take care of the rest, powering the system rechargeable batteries through the solar panel located on the Aqua-Magic* timer. To ensure the well-being of your plants in complete autonomy.
Magical, don't you think?

*To ensure your Aqua-Magic System works correctly, the timer must be placed in direct sunlight. The container must be located in the shade, to prevent the water from reaching high temperatures. Alternatively, it is recommended to water at night or early in the morning to allow the water to cool down.

CREATE YOUR SYSTEM

+Installation guide

US video tutorial
ES video tutorial
FR video tutorial

INSTALLATION GUIDE

Xclose
  • 0
    Setting up the irrigation line is really simple. It only takes a few minutes and no special tools are required.
  • 1

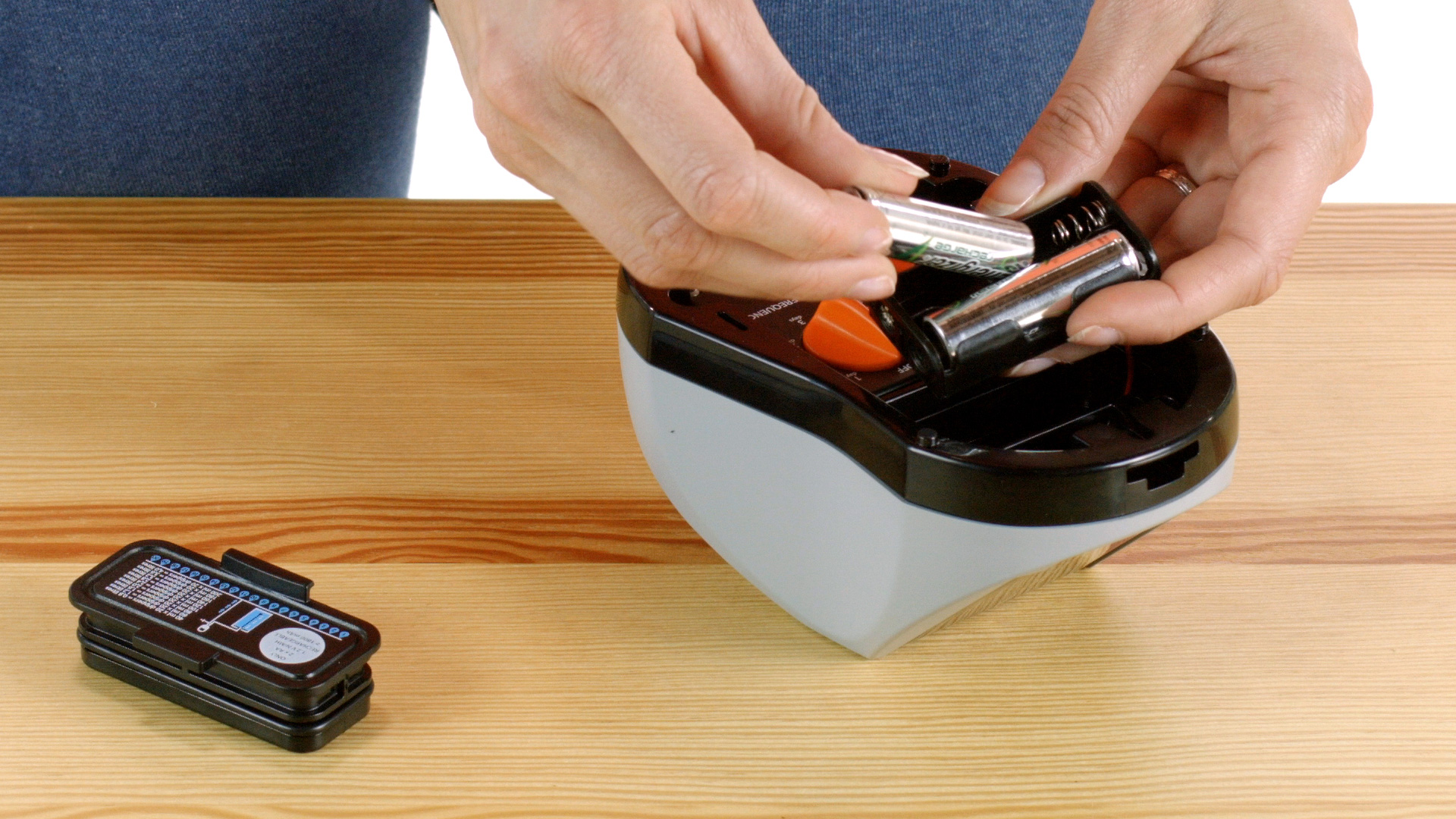

    Insert 2 rechargeable type batteries (HR6/AA 1.2 V NiMH with a capacity of at least 1800 mAh) into the timer housing (it is recommended that the batteries are fully charged). If the batteries are not charged, place the timer in the sun in off mode for one day.
  • 2

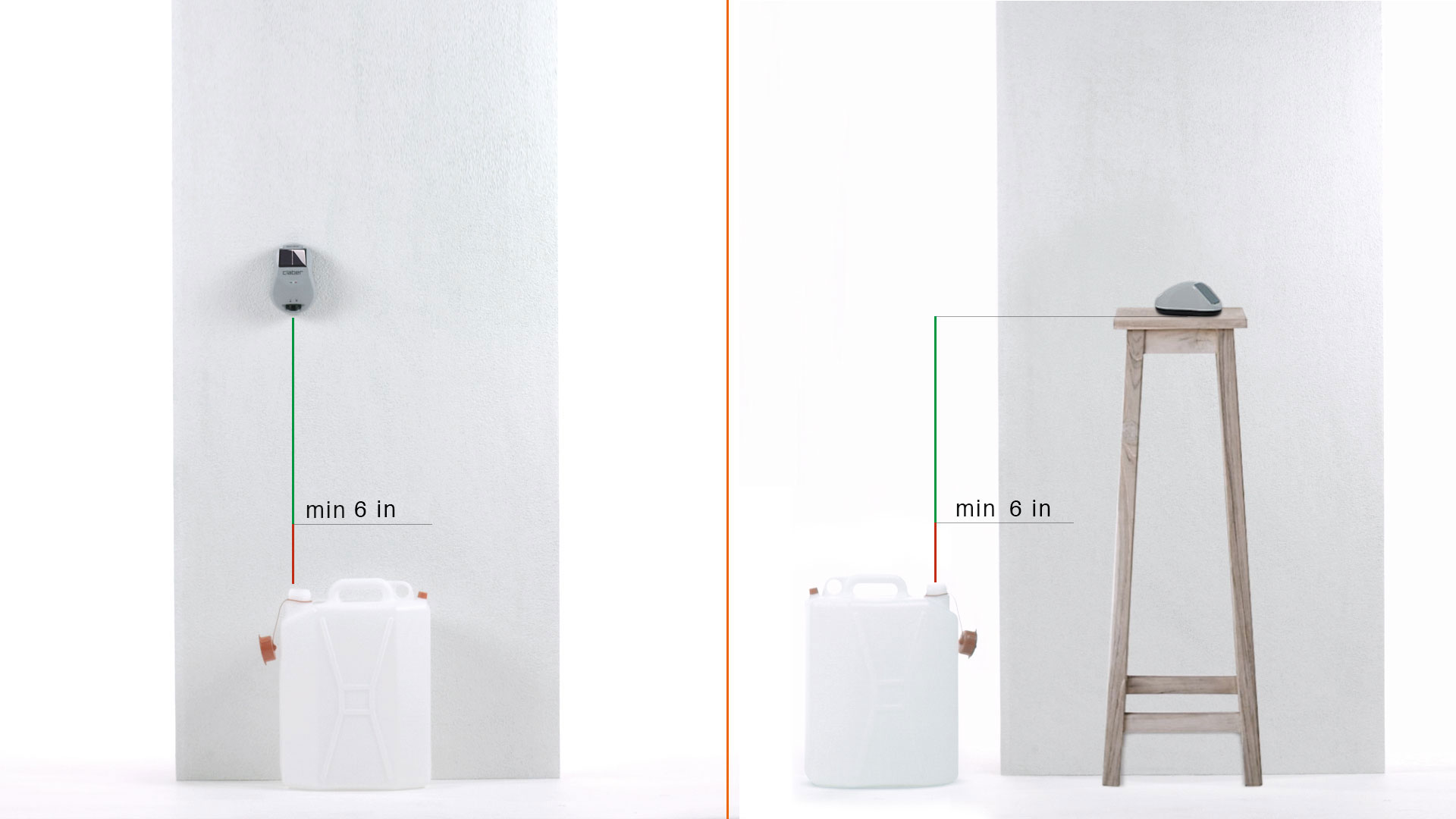

    Position the timer on a stable support or fasten it to the wall using the supplied bracket. Warning: the timer must be exposed to direct sunlight and placed at a height of at least 6 inches above the container water level.
  • 3

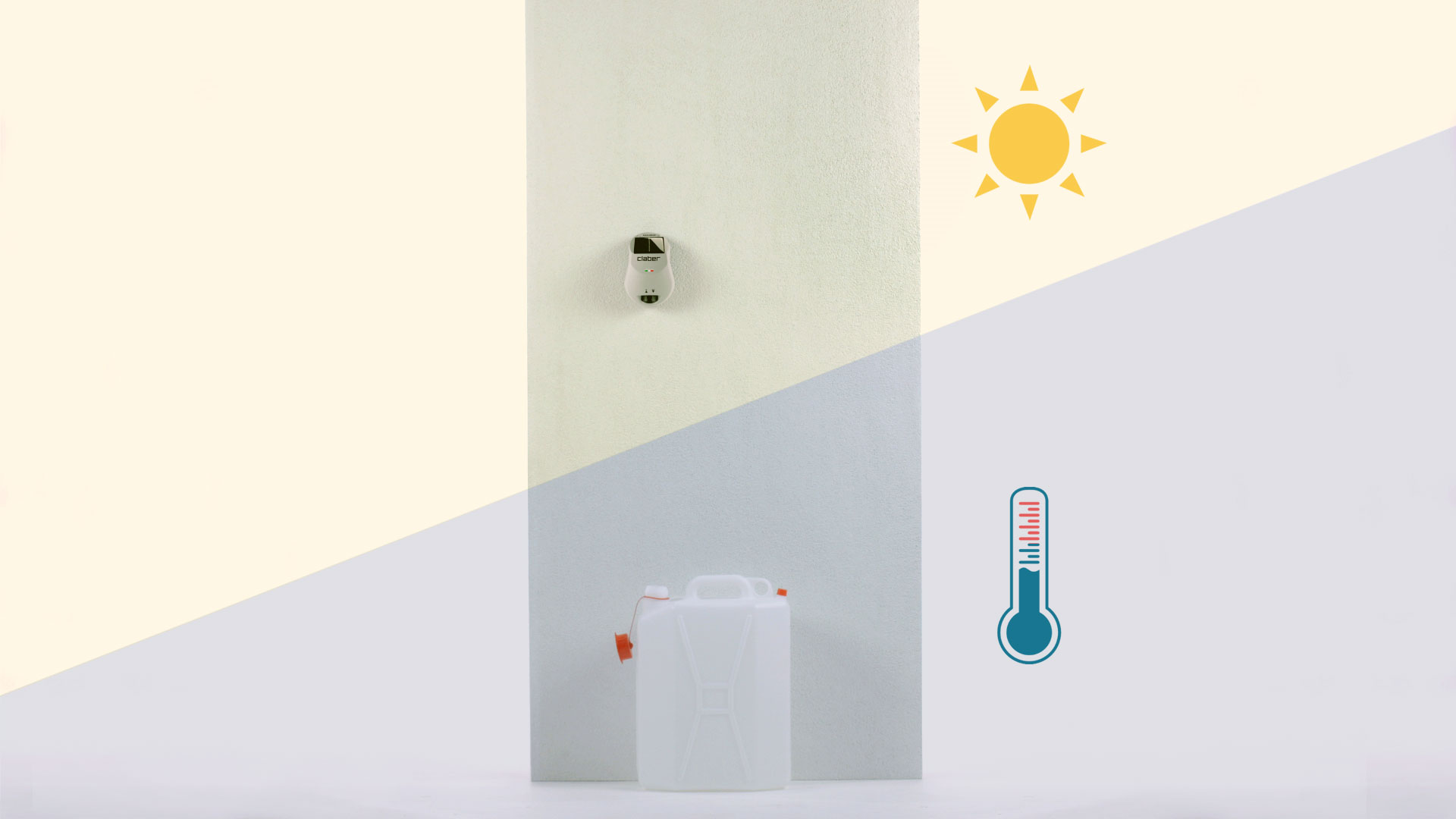

    Place the container in the desired location. Warning: the container must be placed in the shade to avoid overheating the water. Otherwise, you will need to water at night or early in the morning.
  • 4

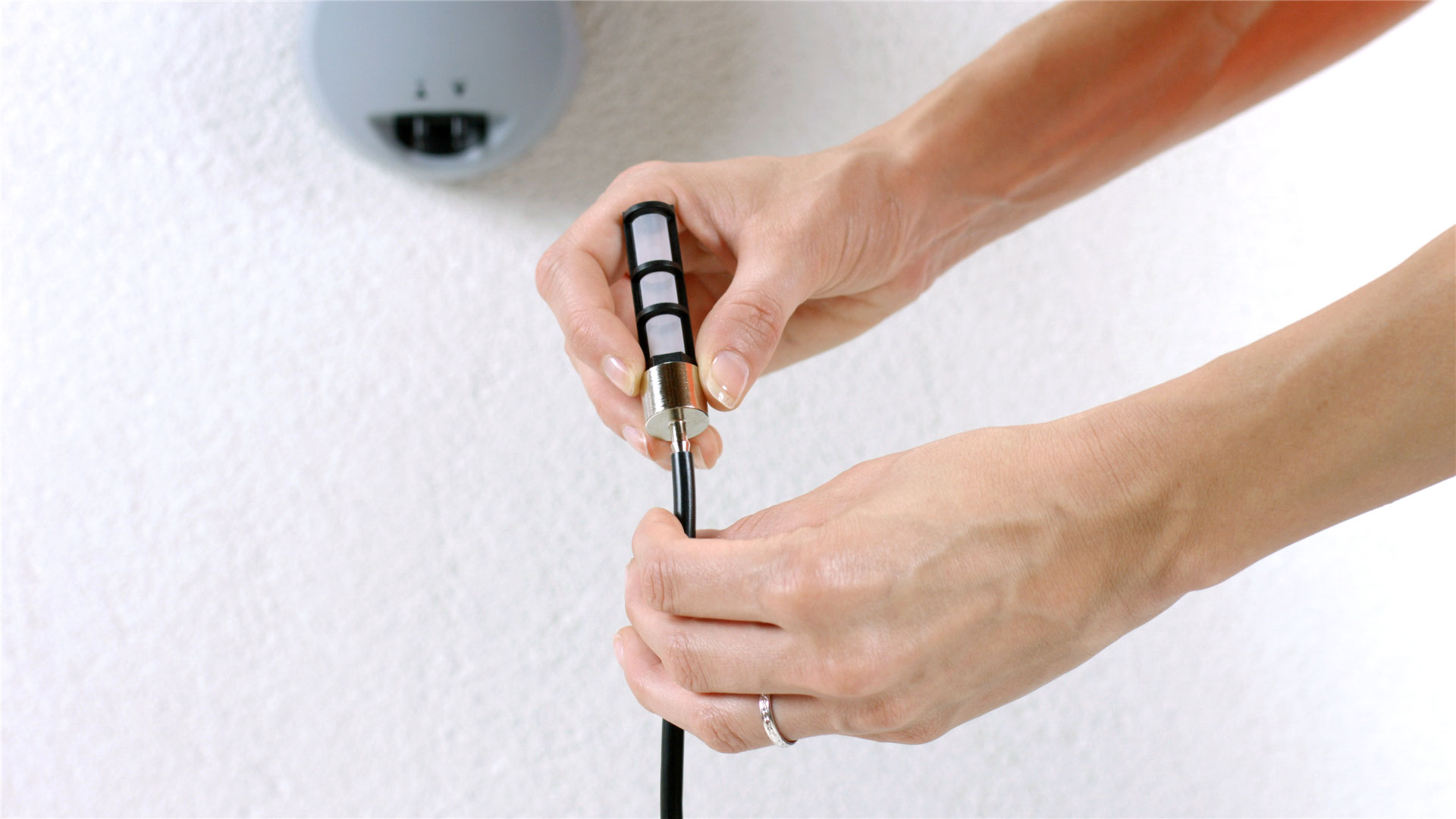

    Take the ¼” distribution tubing and attach the supplied filter to one end.
  • 5

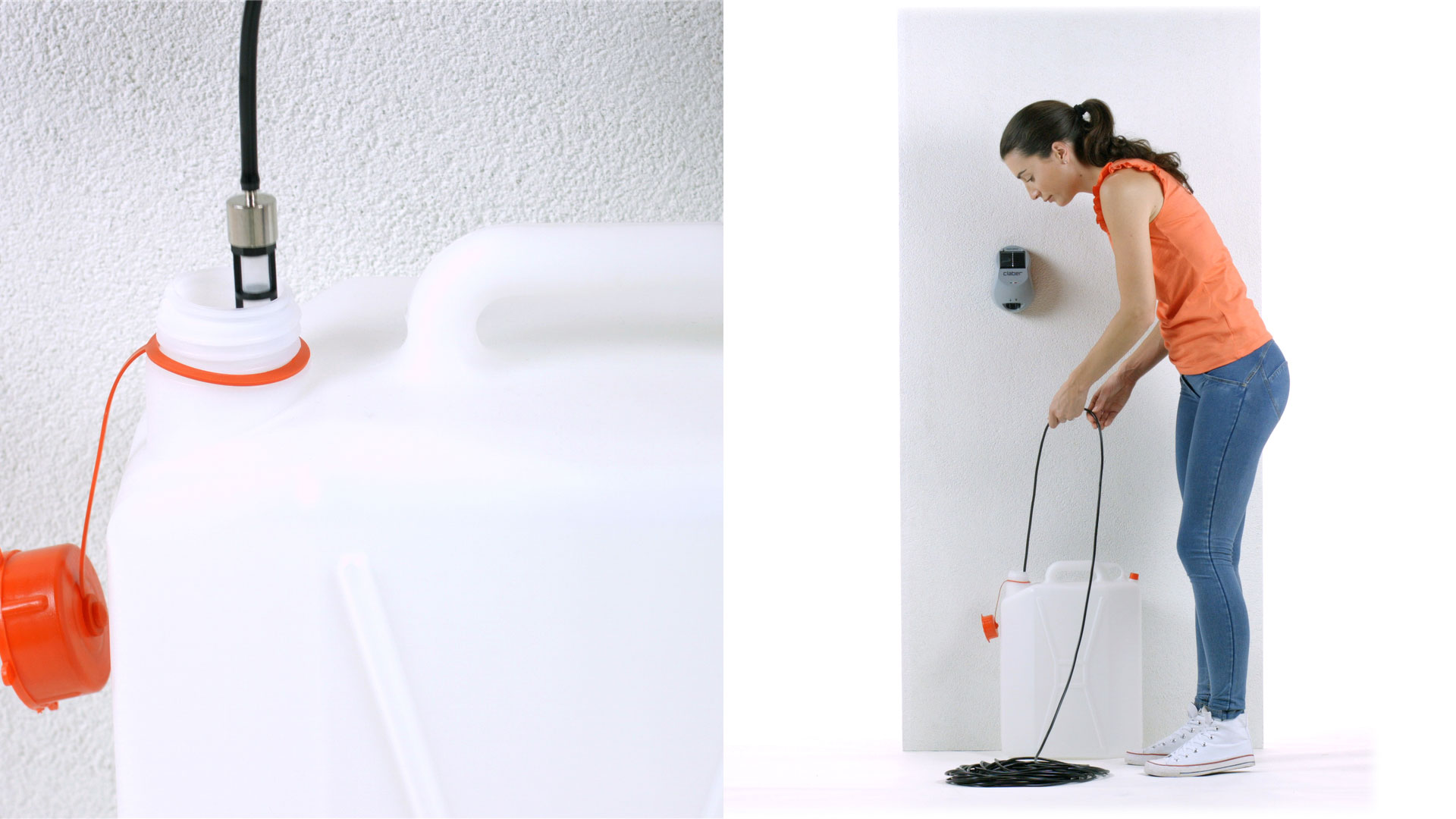

    Insert the filter into the water container and slide it inside. It is important that the filter reaches the bottom of the container.
  • 6

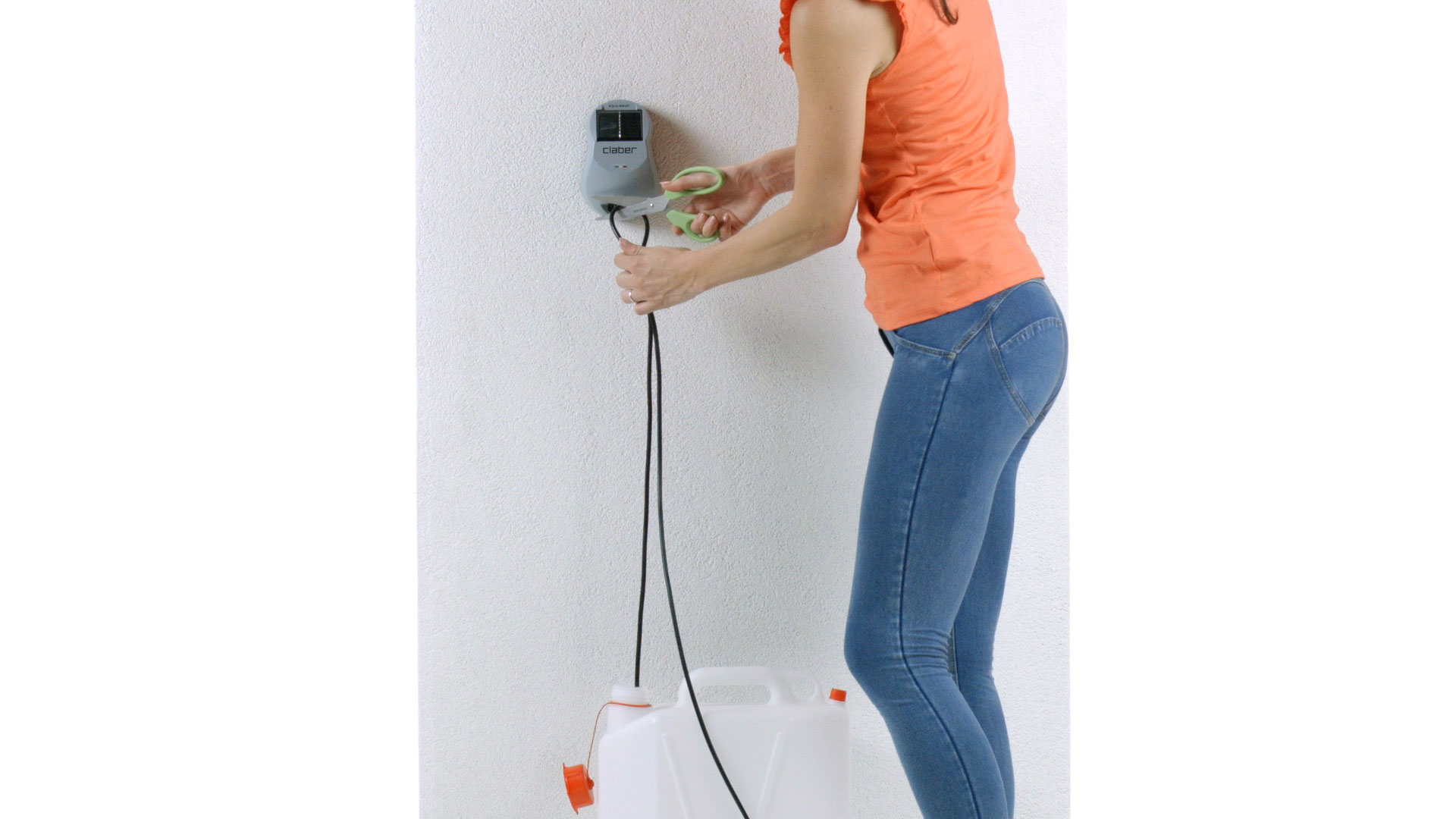

    Unwind the distribution tubing until it reaches the timer and cut it.
  • 7

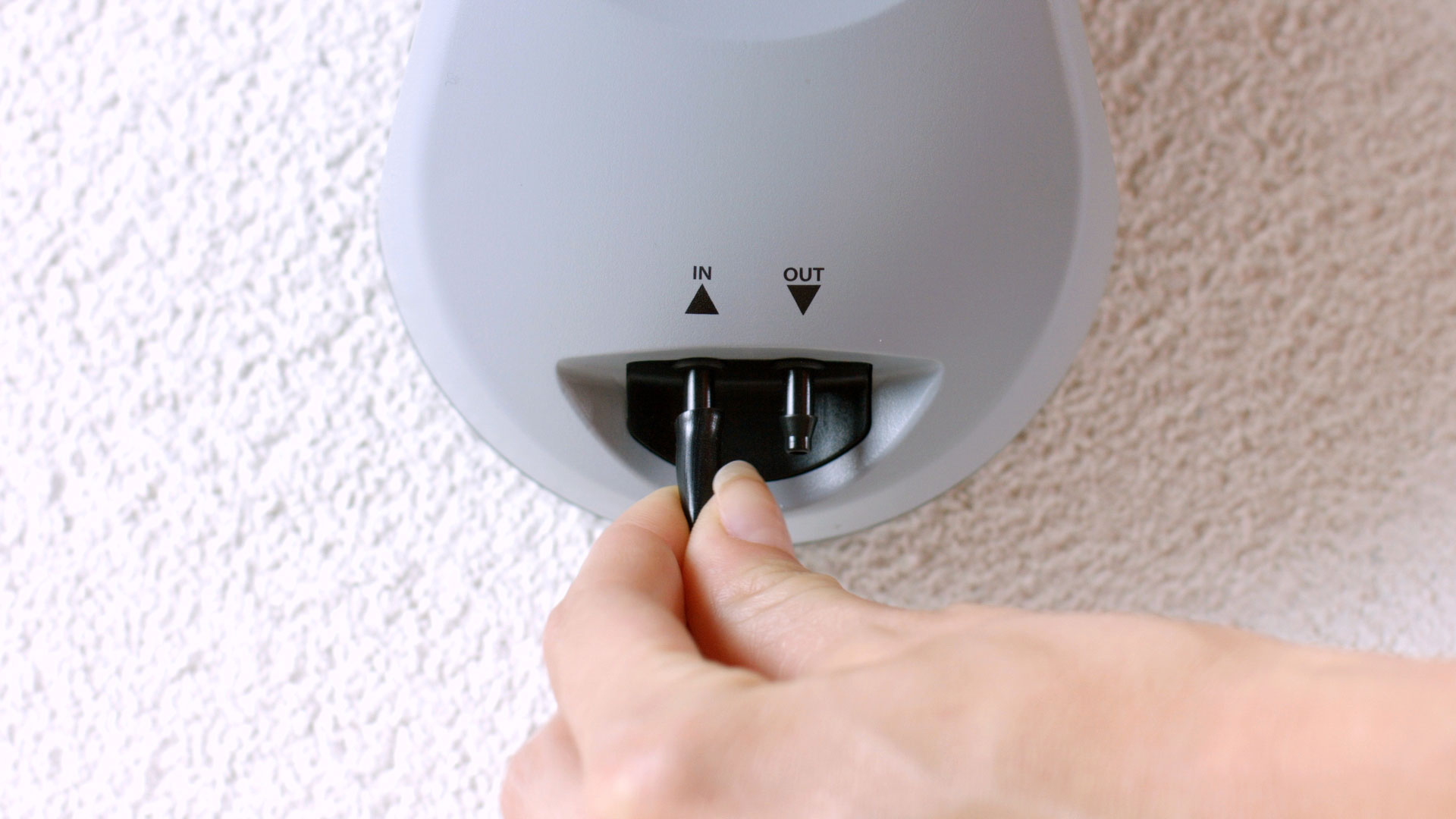

    Connect the distribution tubing to the Aqua-Magic timer using the connector marked IN - incoming water.
    The suction tube is now ready!
  • 8
    Cut 2 inches of distribution tubing and connect it to the non-return valve. Connect the valve to the end of the distribution tubing roll.
  • 9
    Connect the end of the distribution tubing roll, now complete with the valve, to the connector marked OUT - outgoing water.
  • 10
    Roll out the distribution tubing until you reach the first watering pot, in order to start creating the irrigation line.
  • 11

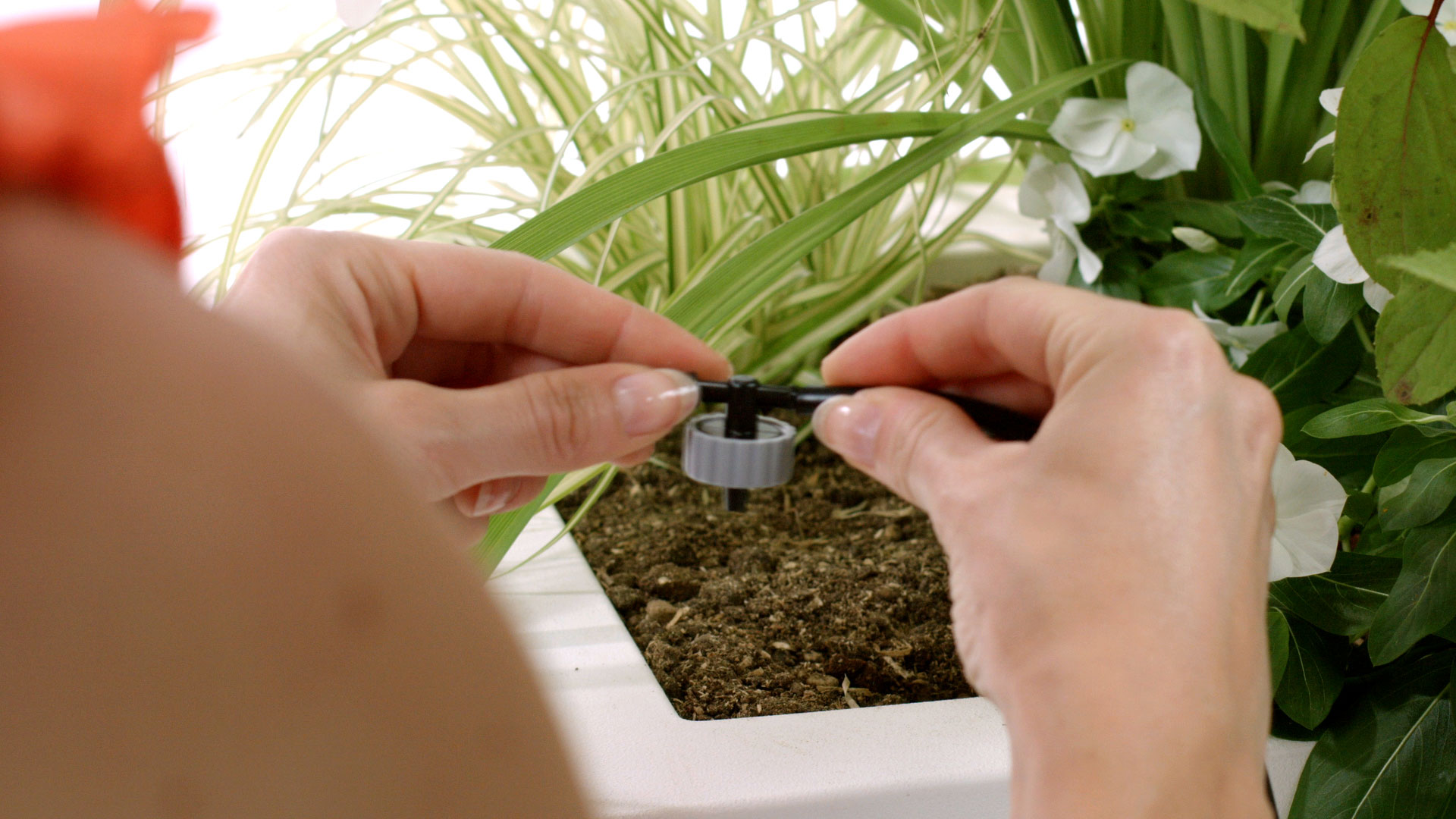

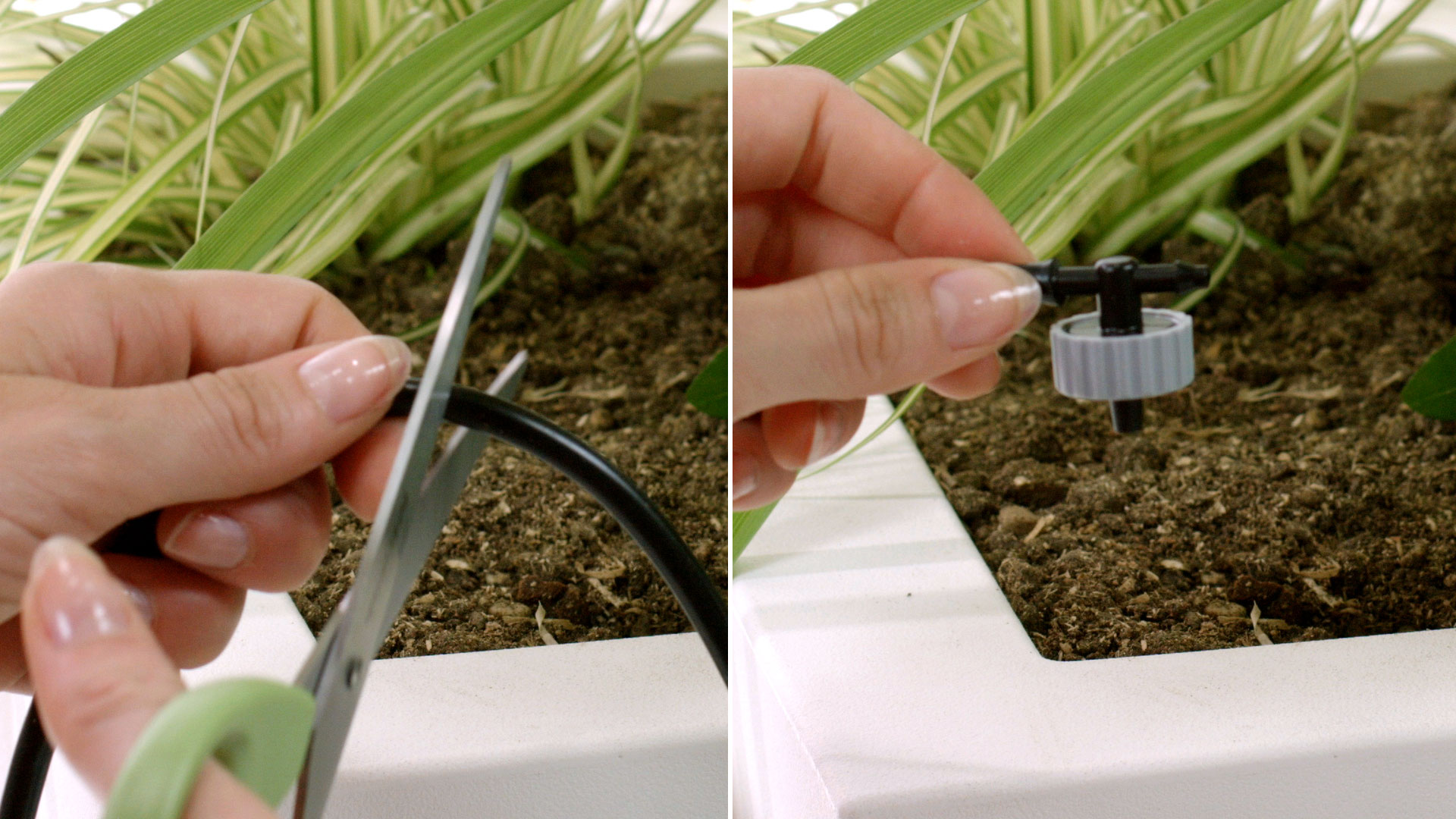

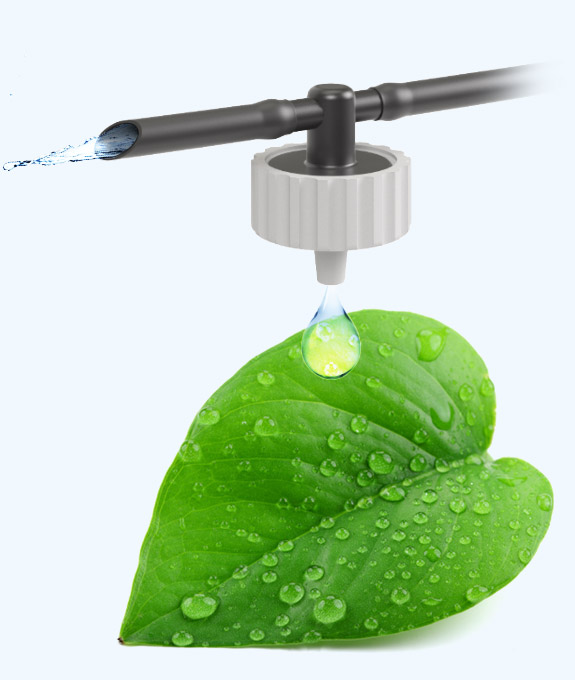

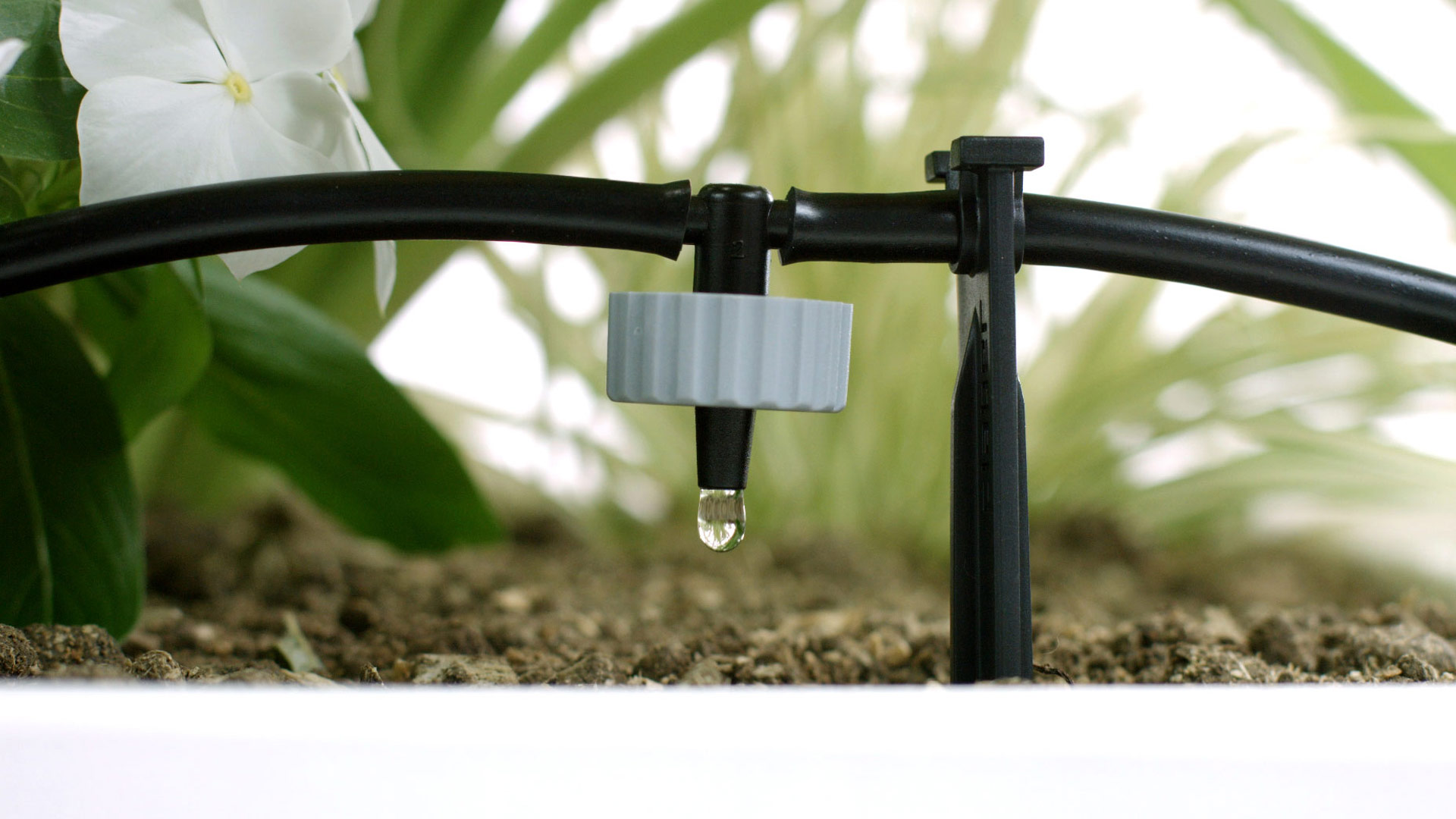

    Cut the distribution tubing near the first pot and insert the first dripper in the cut piece. The drippers have been specifically designed to ensure an optimal water flow. Do not unscrew the gray ring nut.
  • 12

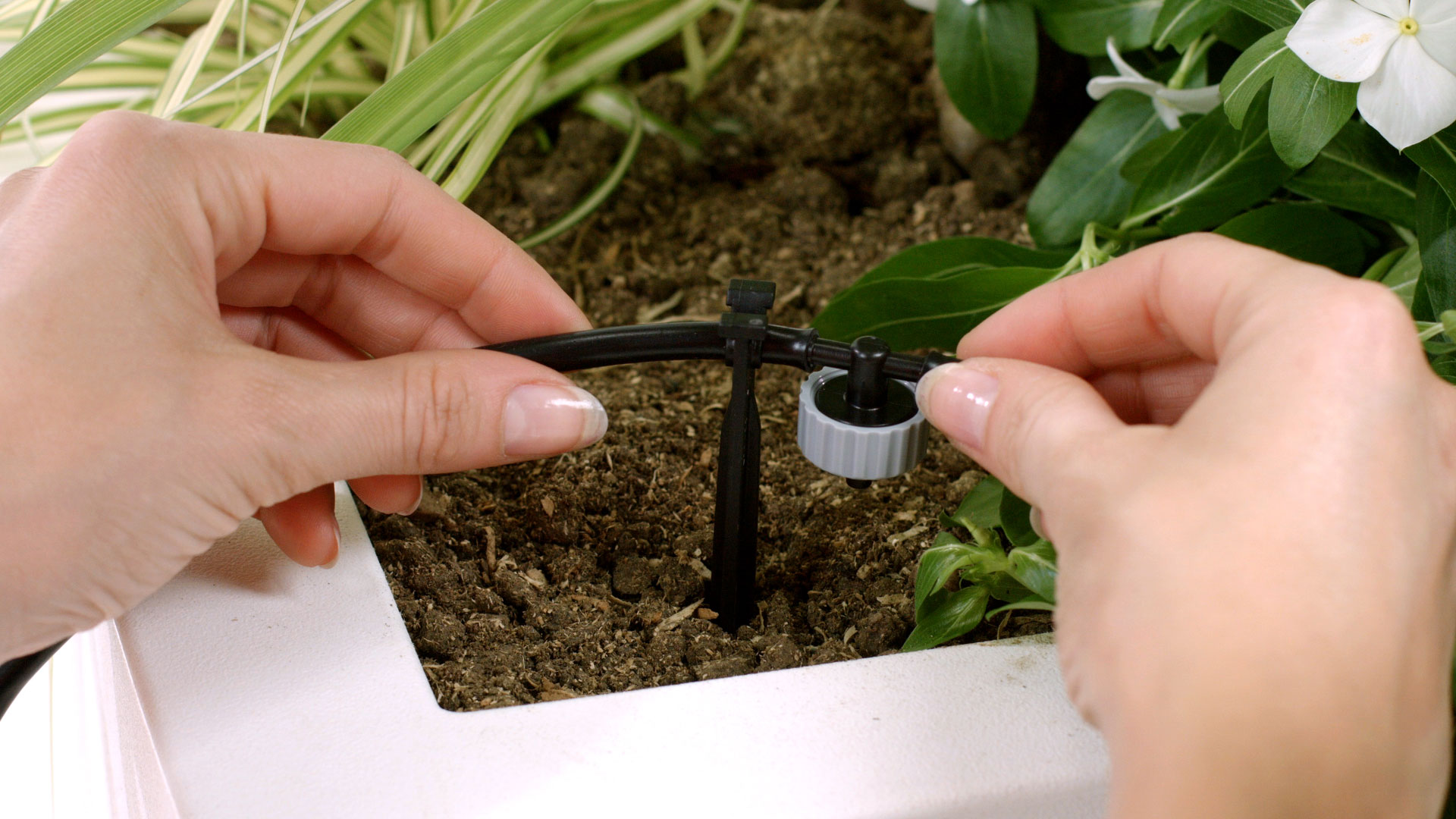

    Connect the end of the distribution tubing to the other side of the dripper, to continue the line.
  • 13
    Fix the dripper in the ground, using the stake supplied.
  • 14

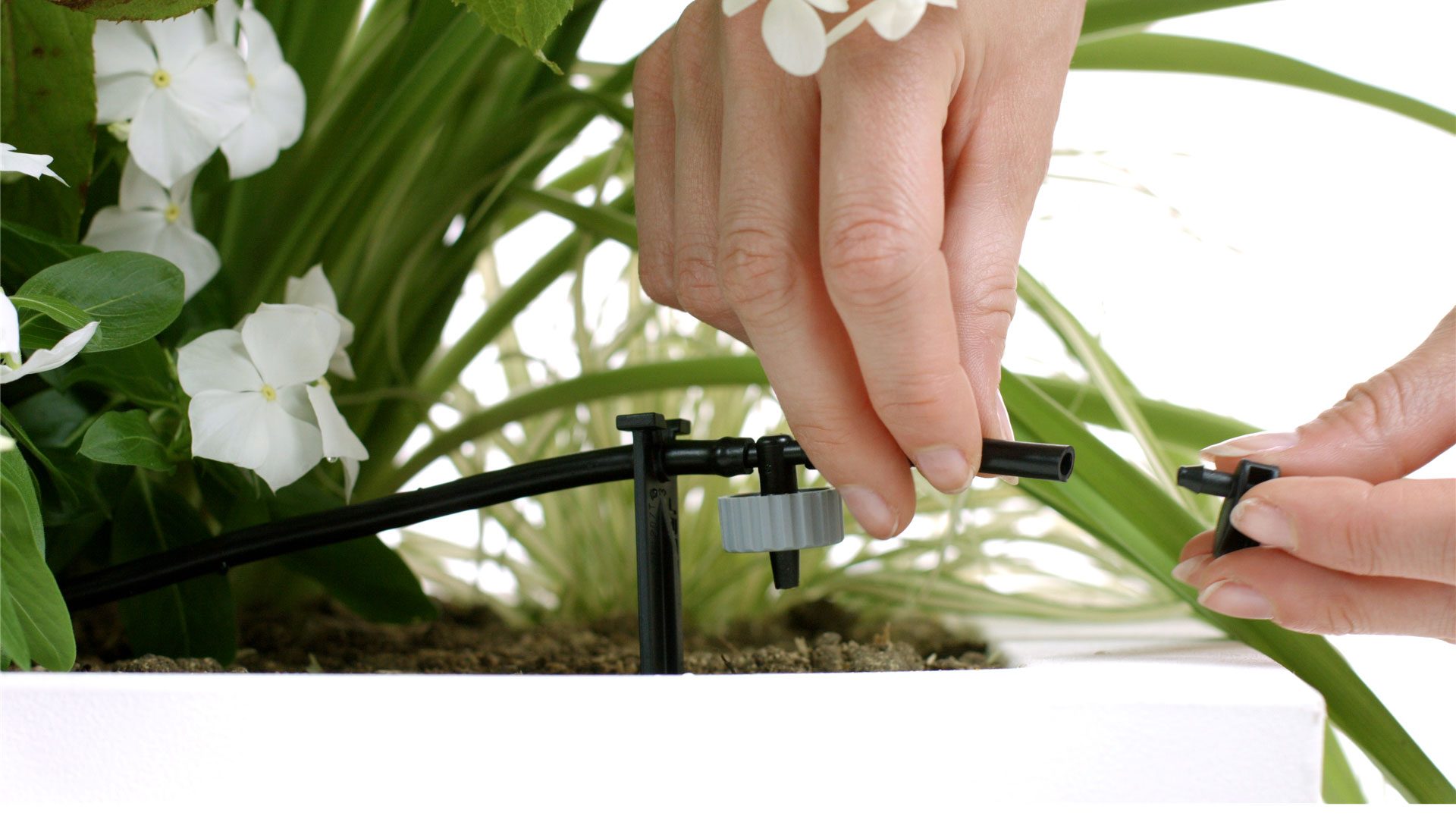

    Roll out the distribution tubing to the next pot and repeat the same operations to connect the second dripper. (Cut the tubing, fix the dripper and the stake and continue). Follow the same steps for each plant.
  • 15

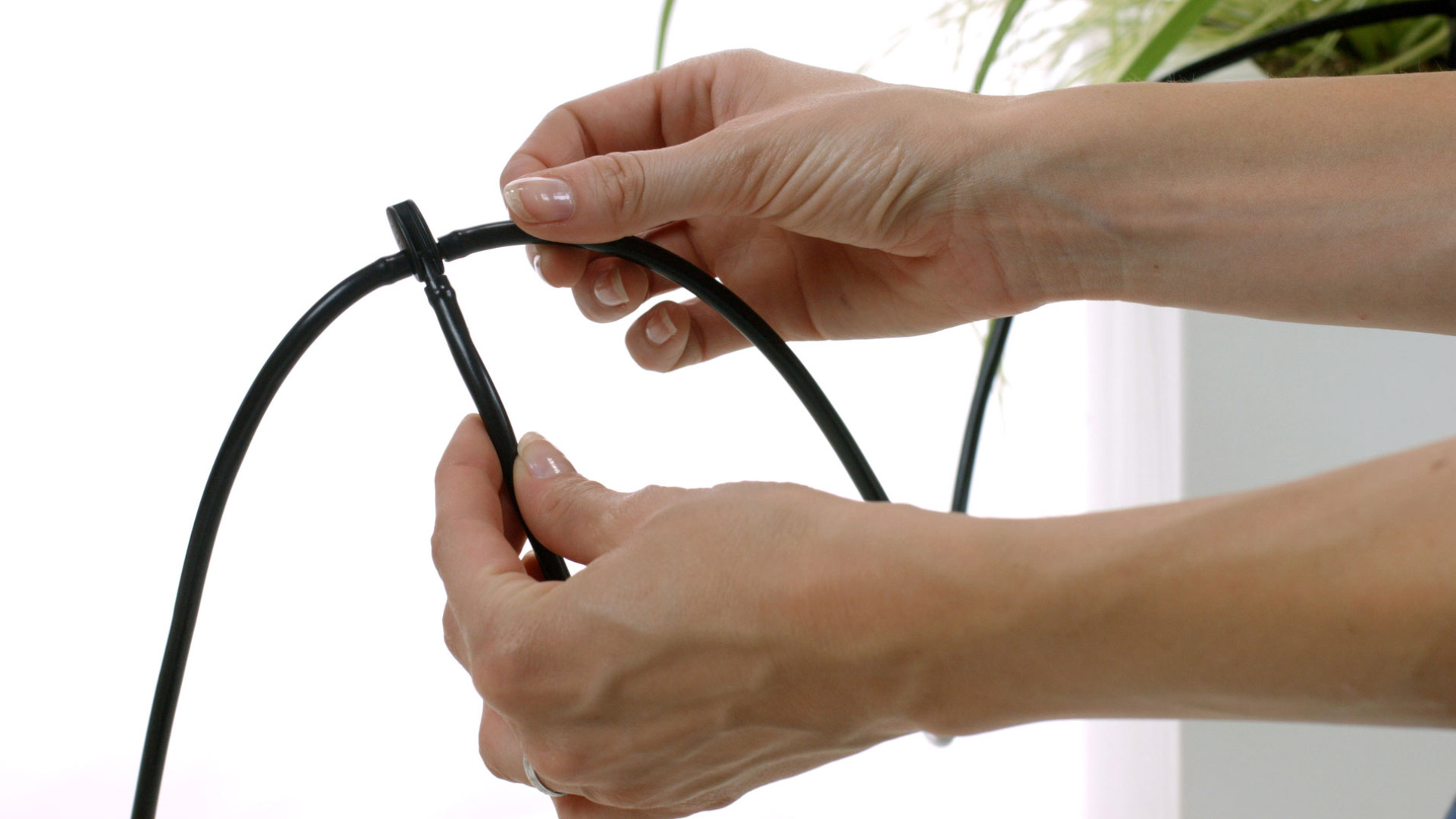

    Using the three-way connectors supplied with the kit, you can create leads branching off from the main line.
  • 16
    Insert the end cap at the end of each irrigation line.
  • 17
    After filling the water tank, you can now program the Aqua-Magic System.
  • 18

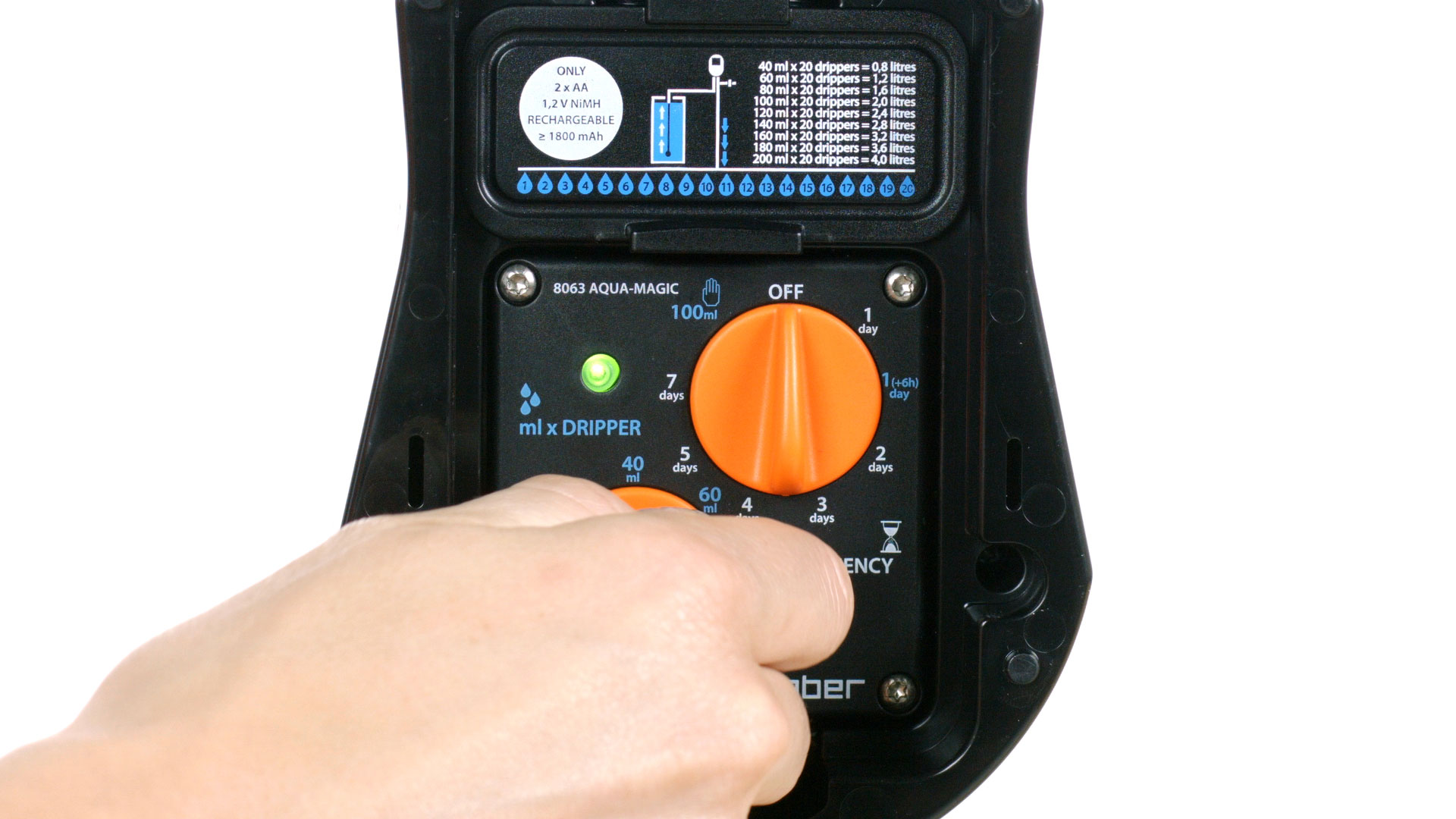

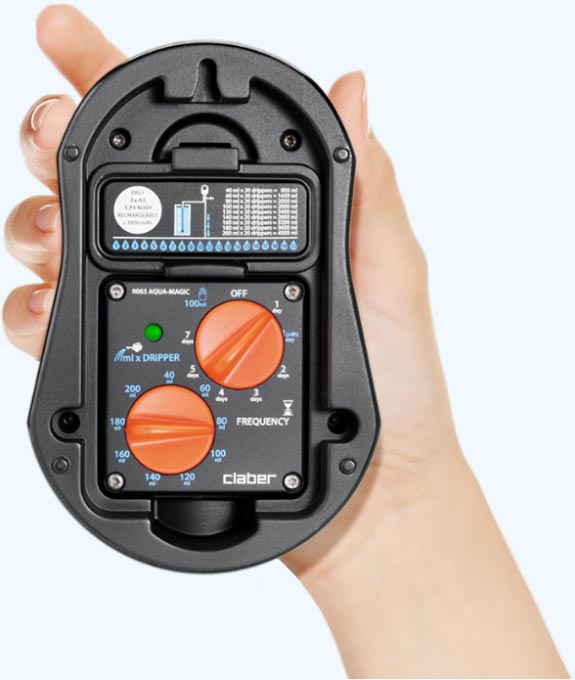

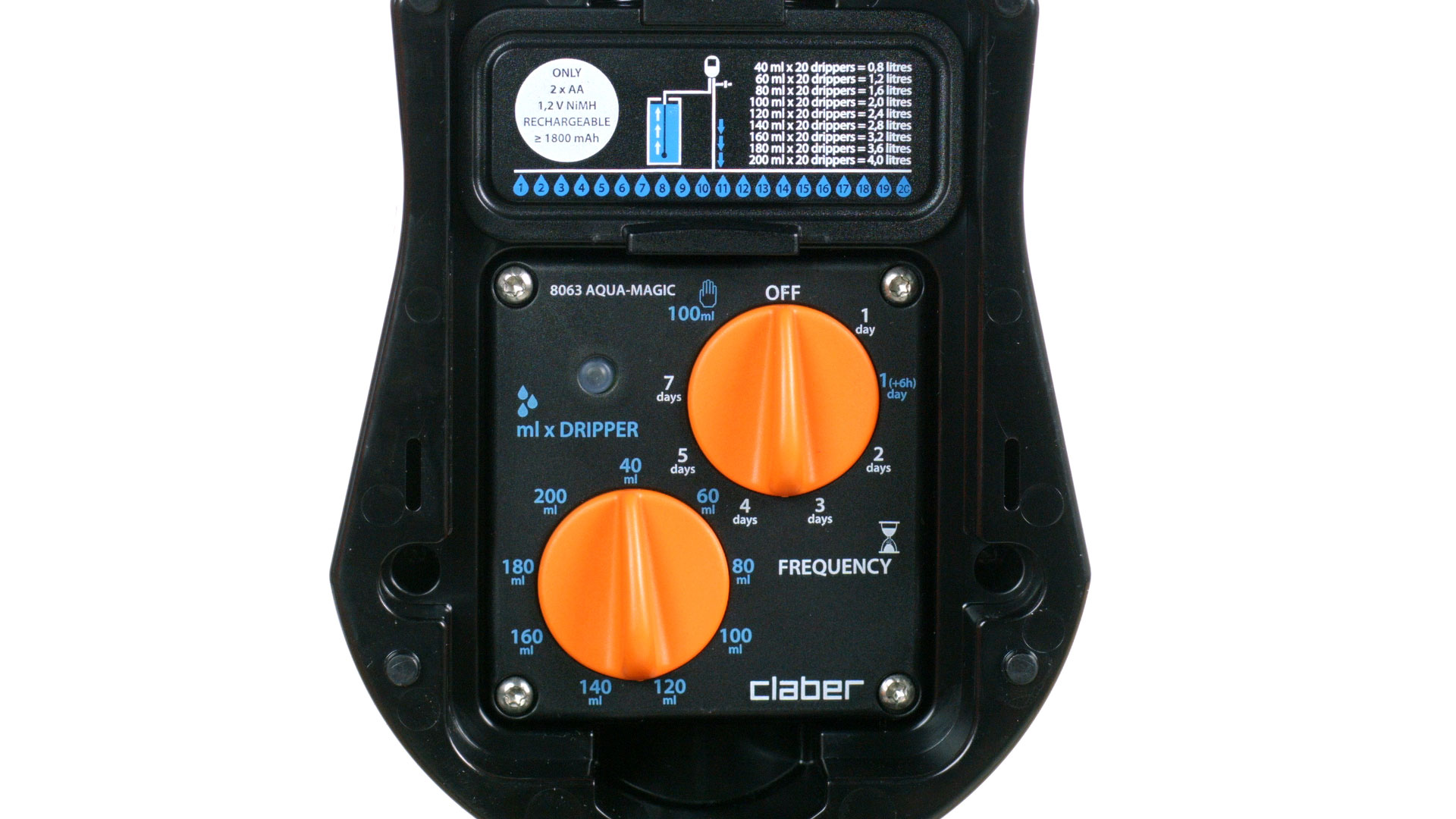

    Turn the two knobs to select the watering frequency - from daily to once a week; daily watering can be programmed with a delayed start of 6 hours - and the amount of water to be released by the drippers - from 1.35 oz (40 ml) to 6.75 oz (200 ml) for each dripper.
  • 19

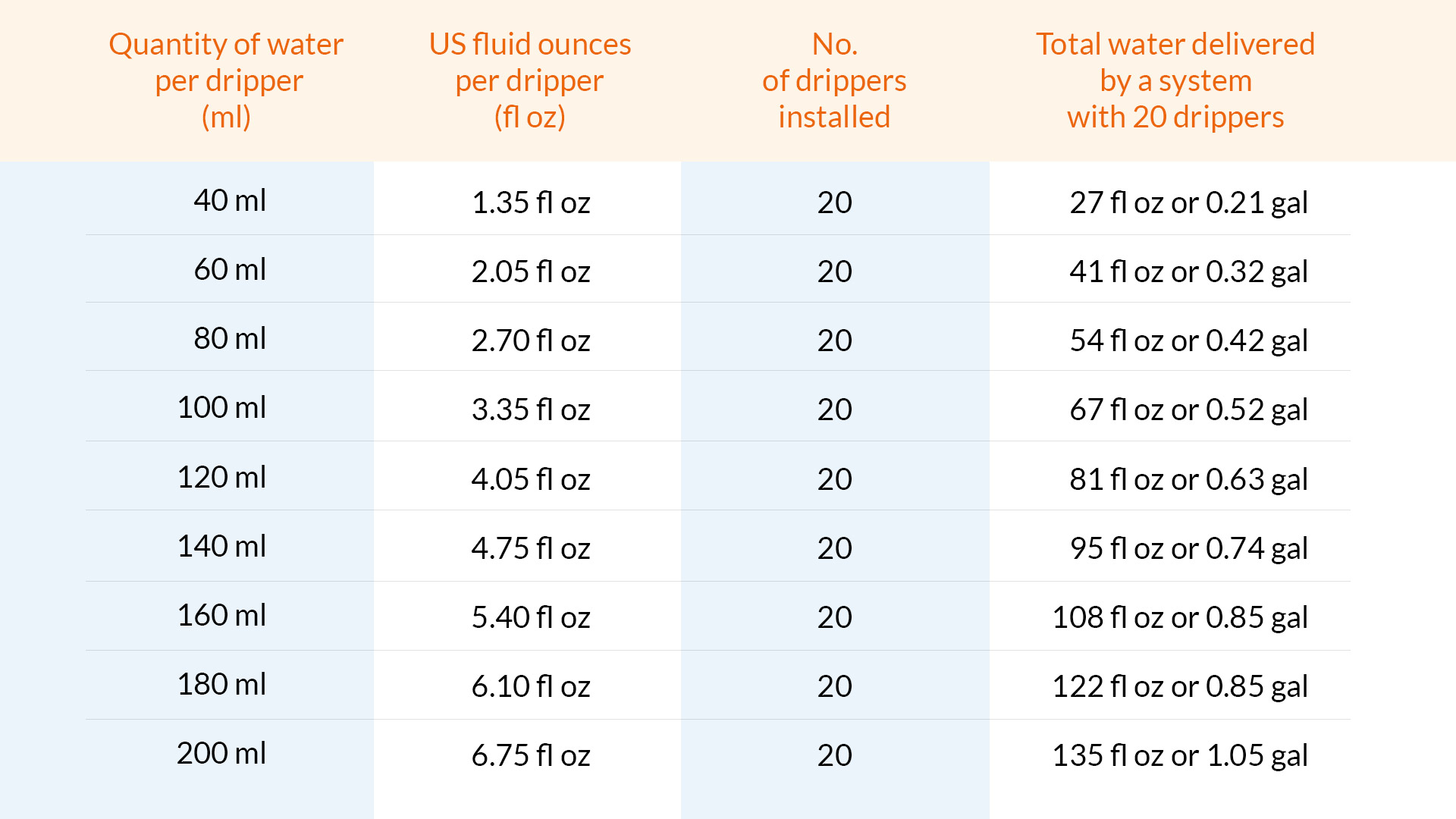

    Thanks to the useful ml to oz conversion chart, you may easily choose the right amount of water to be delivered from each dripper, simply turning the rotary knob to the required setting.

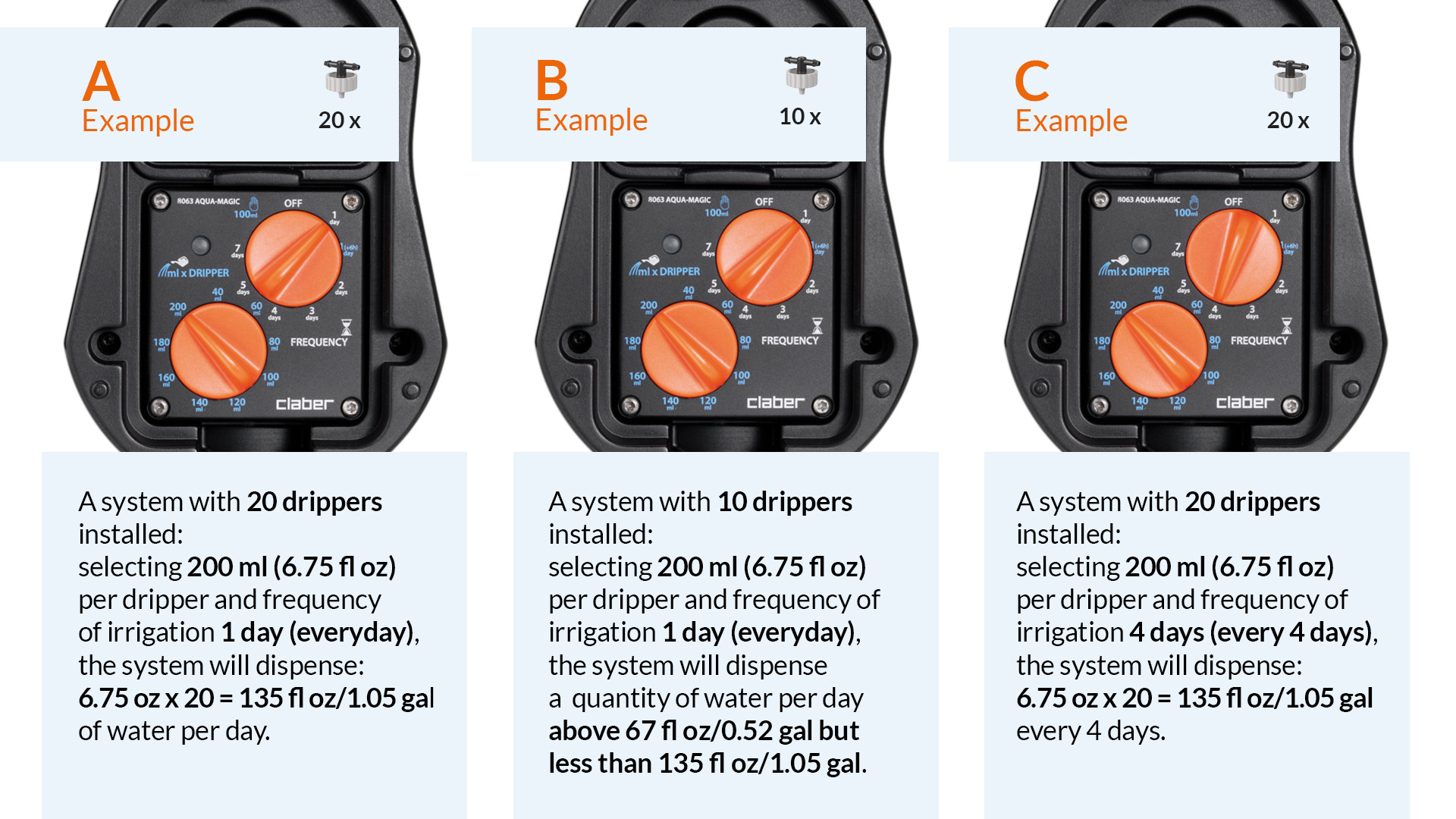

    Note: the amounts of water indicated refer to the water delivered by each dripper on each watering cycle, considering 20 drippers installed.
  • 20
    You may choose to create a system using less drippers (minimum 10, maximum 20). In this case, remember that the amount of water delivered by each dripper will vary from the settings, as these are calculated considering all the 20 drippers installed. For further information, you may refer to the examples above.
  • 21
    Once you have selected the desired watering program, the Aqua-Magic System will immediately begin to water your plants.
    Now all you have to remember is to refill the tank when the water is finished.
